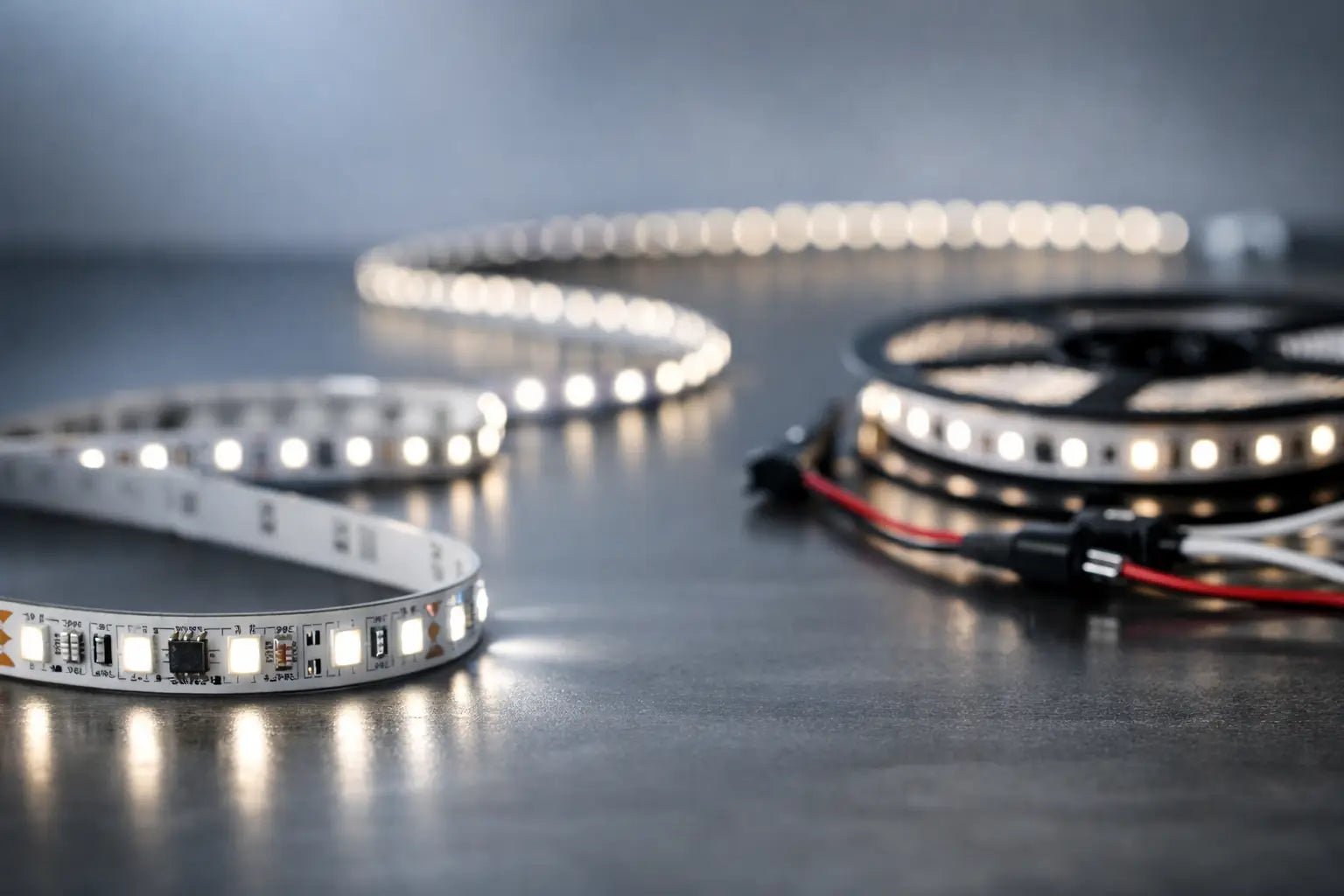

A beautiful cove light can look perfect during testing, then reveal a dimmer, warmer-looking section at the far end once the full run is switched on. That is LED strip voltage drop long run behavior, and it is one of the most common reasons an otherwise good strip installation gives uneven results.
The fix is not simply buying a larger driver. Long LED strip runs need to be planned as a complete system: strip voltage, watts per meter, cable length, wire gauge, driver location, and power injection points all affect the final glow. Get those details right before the false ceiling is closed, and the result is smooth, consistent light from one end of the room to the other.
What causes LED strip voltage drop on long runs?
An LED strip runs on low-voltage DC power, commonly 12V or 24V. As electricity travels through the copper tracks on the strip and through the connecting cable, a small amount of voltage is lost. The farther power has to travel, the greater that loss becomes.
At the beginning of a long strip, LEDs receive close to their intended voltage and brightness. At the end, they may receive less. On a warm white strip, the far end can appear dimmer or slightly different in color. On tunable white strips, voltage drop can also make the warm and cool channels look uneven, particularly when both channels are operating at high output.
COB LED strips make this issue especially noticeable because their continuous light line is designed to look smooth. A gradual fade in brightness along a cove, cabinet run, or TV feature wall stands out more than it would with individual LED dots.
Voltage drop is affected by three main factors: the length of the strip, its power consumption, and the voltage used. A high-output 14W-per-meter strip over a long distance demands more current than a 5W-per-meter strip. A 12V system carries more current than a comparable 24V system, so it experiences voltage drop sooner.
Why a bigger LED driver does not solve the problem
A driver must have enough capacity for the total strip load, but extra driver wattage alone does not push power evenly through a long strip. The limitation is usually the narrow copper pathway inside the strip itself, not the driver’s maximum output.
For example, a 10-meter LED strip rated at 10W per meter requires about 100W. Choosing a 150W driver gives useful headroom, but if that 10-meter strip is powered from one end only, the final section can still be visibly dimmer. The driver has adequate capacity, yet power still has to travel through the entire strip length.
As a practical rule, size the driver above the calculated strip load rather than running it at its absolute limit. Around 20 to 30 percent headroom is a sensible target for most residential installations. For a 100W strip load, a driver around 120W to 150W is usually appropriate, provided it matches the strip voltage and controller requirements.
The driver and controller must also be matched correctly. A 24V strip requires a 24V constant-voltage driver. If you are using a dimmer, Tuya smart controller, or tunable-white controller, check both its voltage rating and its maximum channel output. A controller can become the limiting component even when the driver is sized correctly.
Choose 24V for longer strip runs when possible
For long coves and continuous feature lighting, 24V LED strips are usually the more practical choice. At the same wattage, a 24V strip draws roughly half the current of a 12V strip. Less current means less voltage loss through the strip and supply wiring.
This does not mean every 24V strip can run indefinitely from one end. Strip construction, wattage, and installation conditions still matter. But 24V gives you more room to create clean, continuous runs before power injection is needed.
For shorter cabinet lighting, vanity details, or compact shelves, 12V can work well. It is often suitable where each strip segment is only a few meters long and there is easy access to the driver. For a living room cove that wraps around multiple walls, a 24V system is generally easier to plan and maintain consistently.
How to plan power injection for a long LED strip run
Power injection means feeding power into the strip at more than one point. Instead of asking the first section of strip to carry current all the way to the end, you bring a separate pair of positive and negative wires from the driver or distribution point to additional sections.
For a moderate run, feeding the strip from both ends may be enough. This is often called center feeding or dual-end feeding, depending on where the driver connection is placed. For longer or higher-wattage installations, power may need to be injected at intervals along the run.
Think of a 12-meter cove as separate lighting sections rather than one uninterrupted electrical path. The visible strip can remain continuous, but the electrical supply should be shared across the run. This approach helps maintain brightness and color consistency without changing the design.
A practical arrangement might use a driver located near the center of a false ceiling access point, with separate cable runs feeding the left and right sides. This reduces the distance power needs to travel. If the driver must be installed at one end, plan larger supply wires and additional injection points rather than relying on the strip alone.
For tunable-white strips, each channel needs the correct corresponding connection at every injection point. Mixing up warm and cool channels can cause incorrect color control. For RGB or RGBW strips, the wiring becomes more involved, so label every cable before closing up the ceiling.
Wire gauge matters between the driver and strip
The cable between your LED driver, controller, and strip is part of the electrical run. A long, thin cable can create its own voltage drop before power even reaches the LED strip.
Use sufficiently thick copper cable for higher-current or longer-distance connections. The correct gauge depends on the current, cable length, and voltage, so there is no one-size-fits-all answer. A short connection from a nearby driver can use a smaller gauge than a long feed running across a ceiling void.
Avoid treating pre-attached strip leads as the only wiring you need for a large installation. Those short leads are useful for connection, but they are not designed to solve power distribution across a full-room cove. When in doubt, keep drivers as close to the lighting zone as practical and use heavier-gauge supply cable for longer feeds.
Signs your long LED strip run needs attention
The clearest sign is a dim end, but voltage drop can show up in less obvious ways. You may see an uneven warm glow along the cove, a noticeable shift in white temperature, or a section that appears weaker when the strip is set to full brightness.
With smart or dimmable lighting, a far-end section may also respond differently at low dimming levels. That does not always mean the controller is faulty. First, check whether the run is powered from one end only and whether the strip load exceeds the manufacturer’s recommended single-feed length.
Do not try to hide a voltage-drop issue by increasing brightness settings or fitting a more powerful driver without recalculating the setup. Overdriving is not a solution, and it can shorten component life. The right fix is better distribution of the correct voltage.
A simple long-run planning example
Suppose you are installing 15 meters of 24V COB strip around a living room cove. The strip is rated at 10W per meter, so the total load is 150W. A driver with appropriate headroom may be selected, followed by a compatible controller if you want dimming or tunable white.
Rather than connecting all 15 meters in one chain from a single end, divide the power plan. You could feed multiple sections from a centrally located driver position, or use a distribution point with separate cable runs to each side of the cove. The exact layout depends on where access panels, driver space, and ceiling framing allow wiring to be placed.
Before final installation, test the entire run at full brightness for several minutes. Look at it from the normal viewing position, not only from directly underneath. This is when uneven output is easiest to identify and fix, before joinery, paint touch-ups, or false-ceiling work makes access difficult.
A long LED strip run should not be judged only by whether it turns on. Plan the voltage, driver capacity, wiring, and injection points together, and your lighting will deliver the even, flicker-free glow the design was meant to show.
